NetEventSimulator – Architecture & API Reference
This document describes the software architecture of NetEventSimulator using UML-style diagrams and module-level API descriptions. It is a companion to the README and the auto-generated Doxygen reference.
UML diagrams are available as PNG and EPS in the diagrams/ directory. PlantUML source files (.puml) are included so diagrams can be regenerated with plantuml -tpng diagrams/*.puml.

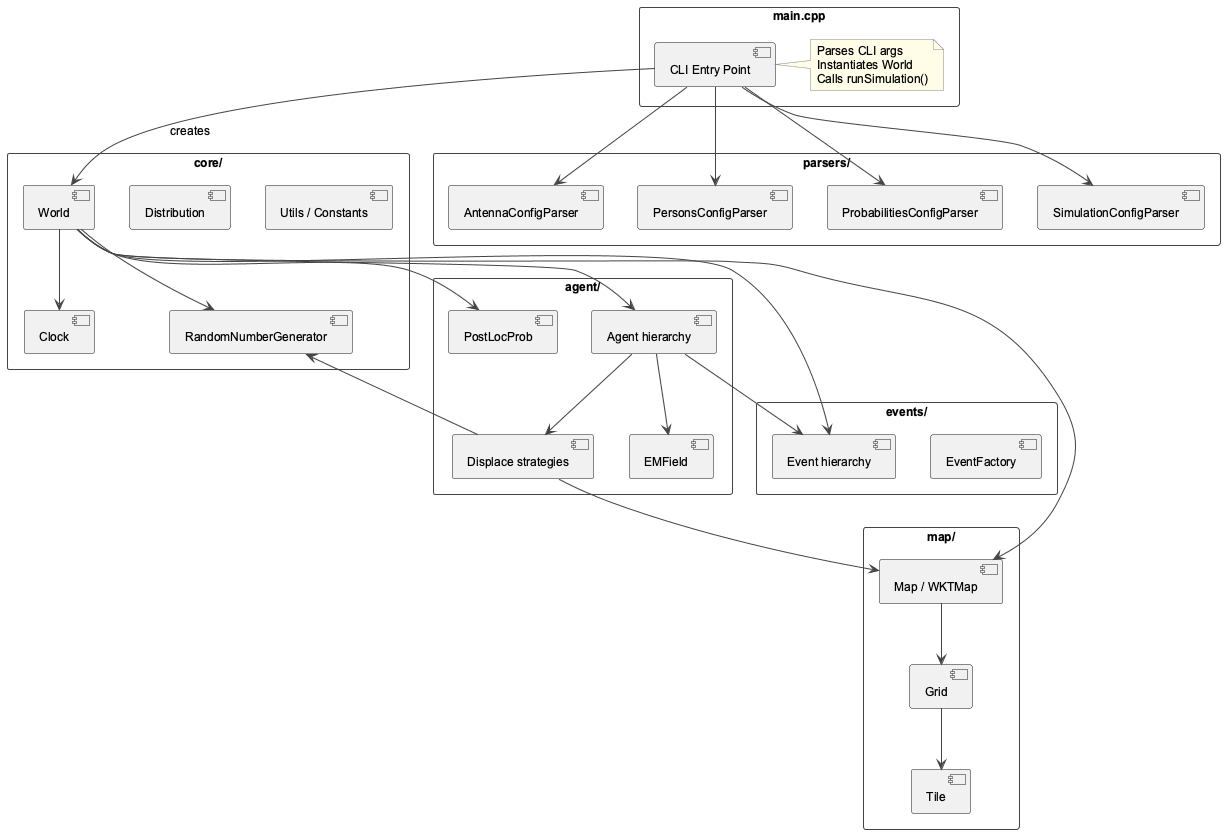

1. Module Map
The codebase is split into several modules. Arrows show compile-time dependencies (→ = “depends on”).
┌──────────────────────────────────────────────────────────────────┐
│ main.cpp │
│ Parses CLI args → instantiates World → calls runSimulation() │
└────────────────────────────┬─────────────────────────────────────┘
│
▼
┌─────────────────────────────────────────────────────────────────────────────┐
│ core/ │
│ World · Clock · RandomNumberGenerator · Distribution · Constants · Utils │
└──────┬──────────────┬──────────────┬────────────────┬──────────────────────┘
│ │ │ │
▼ ▼ ▼ ▼
┌────────────┐ ┌────────────┐ ┌──────────────┐ ┌──────────────────┐
│ agent/ │ │ map/ │ │ events/ │ │ parsers/ │
│ │ │ │ │ │ │ │
│ Agent │ │ Map │ │ Event │ │ SimulationConfig │
│ Person │ │ WKTMap │ │ CellIDEvent │ │ AntennaConfig │
│ Antenna │ │ Grid │ │ CellIDTA- │ │ PersonsConfig │
│ MobilePhone│ │ Tile │ │ Event │ │ Probabilities- │
│ MobileOp- │ │ │ │ EventFactory │ │ Config │
│ erator │ │ │ │ EventType │ │ │
│ Displace │ │ │ │ EventCode │ │ │
│ (6 strats)│ │ │ │ │ │ │
│ EMField │ │ │ │ │ │ │
│ PostLocProb│ │ │ │ │ │ │
└────────────┘ └────────────┘ └──────────────┘ └──────────────────┘

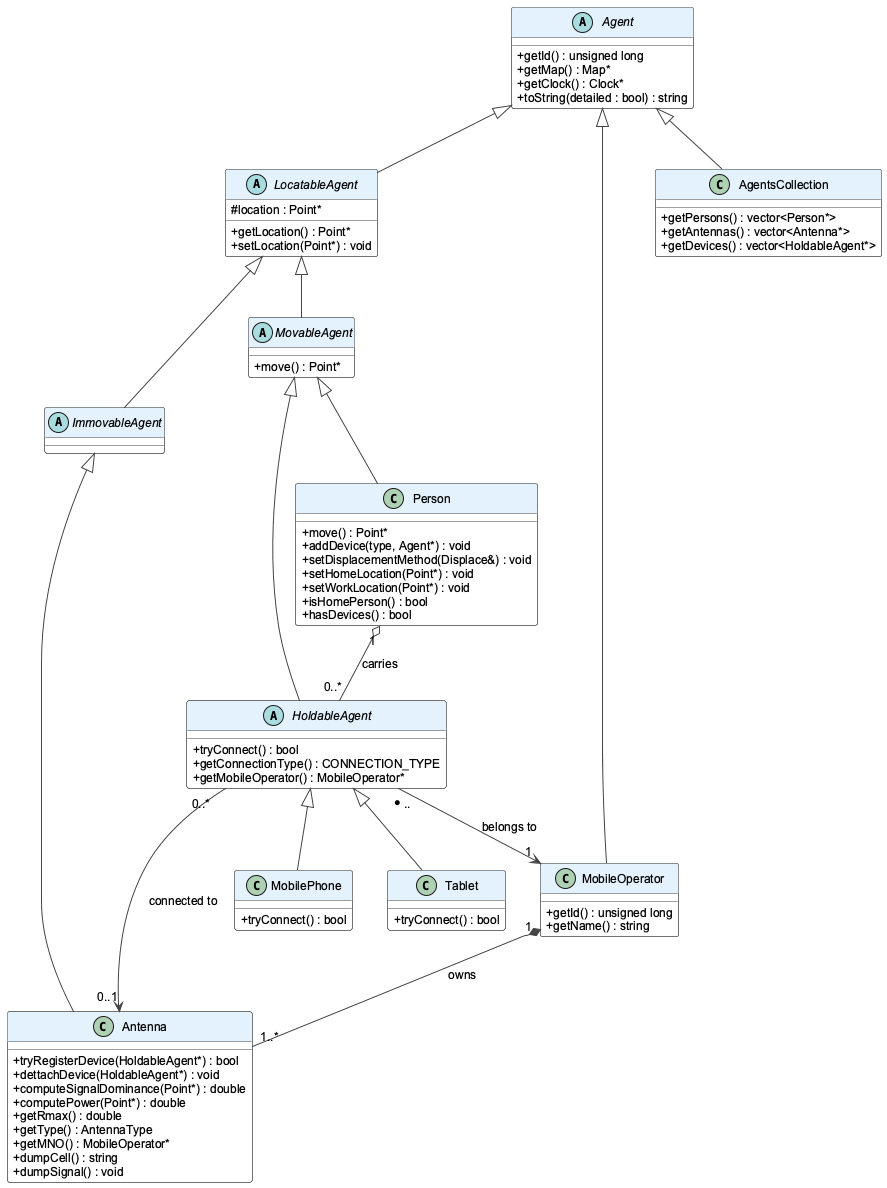

2. Agent Class Hierarchy
Agent (abstract)
├── LocatableAgent (abstract – has a Point* location)
│ ├── ImmovableAgent (abstract – fixed location)
│ │ └── Antenna
│ └── MovableAgent (abstract – location changes each tick)
│ ├── Person
│ └── HoldableAgent (abstract – owned by a Person)
│ ├── MobilePhone
│ └── Tablet
├── MobileOperator
└── AgentsCollection
Key relationships
| Relationship | Description |
|---|---|
Person 1 ──> * HoldableAgent |
A person carries zero or more devices |
HoldableAgent * ──> 1 MobileOperator |
Every device belongs to one operator |
MobileOperator 1 ──> * Antenna |
An operator owns one or more antennas |
HoldableAgent * ──> 0..1 Antenna |
A device is connected to at most one antenna |
Antenna 1 ──> 1 EMField |
Signal coverage is computed by EMField |

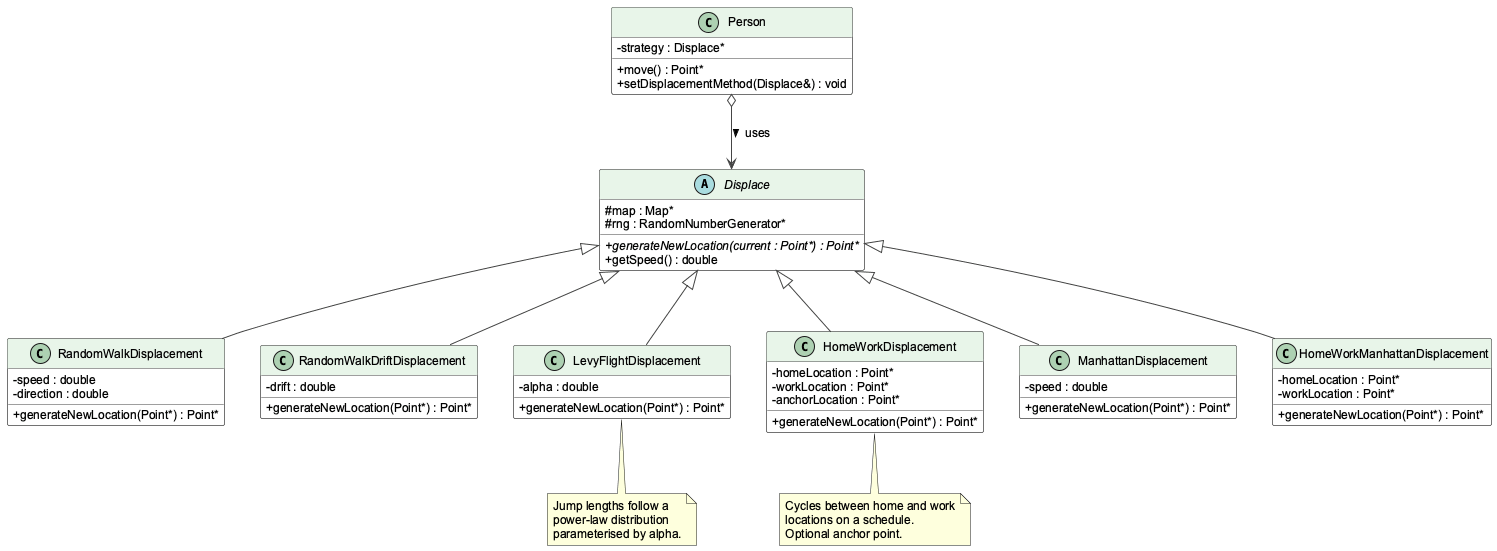

3. Displacement Strategy Pattern
Movement algorithms are encapsulated behind the Displace interface and injected into Person at construction time.
«interface»
Displace
─────────────────────────────────
+ generateNewLocation(Point*) : Point*
+ getSpeed() : double
▲
│ (inherits)
┌──────────┬──────────┬───────────┬────────────────────┬──────────────────────────┐
│ │ │ │ │ │
RandomWalk RandomWalk LevyFlight HomeWork Manhattan HomeWorkManhattan
Displacement Drift Displacement Displacement Displacement Displacement
Displacement
Strategies at a glance
| Class | Movement model | Key parameters |
|---|---|---|
RandomWalkDisplacement |
Uniform random bearing; bounces off map boundary | speed, direction |
RandomWalkDriftDisplacement |
Random walk with a fixed directional bias | drift angle |
LevyFlightDisplacement |
Power-law jump length distribution | alpha (stability index) |
HomeWorkDisplacement |
Cycles between home/work on a schedule | homeLocation, workLocation, anchorLocation |
ManhattanDisplacement |
Axis-aligned grid movement | speed |
HomeWorkManhattanDisplacement |
Home/work cycle along grid streets | same as HomeWork + Manhattan |

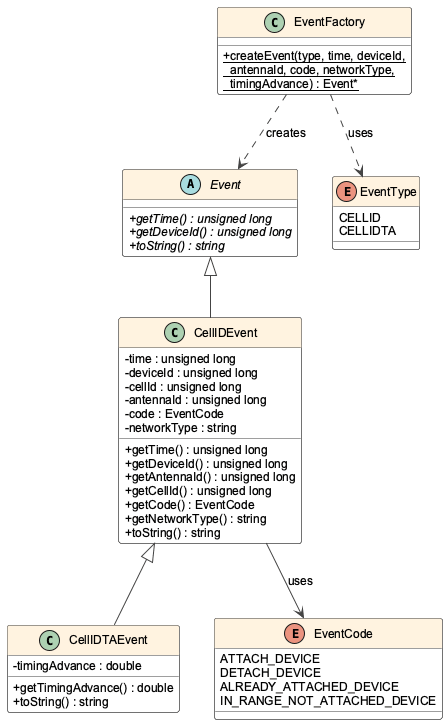

4. Event System
«enumeration» «enumeration»
EventType EventCode
────────── ──────────────────────────────
CELLID ATTACH_DEVICE
CELLIDTA DETACH_DEVICE
ALREADY_ATTACHED_DEVICE
IN_RANGE_NOT_ATTACHED_DEVICE
«interface»
Event
─────────────────────────────────────────────────
+ getTime() : unsigned long
+ getDeviceId() : unsigned long
+ toString() : string
▲
┌──────┴───────────────┐
CellIDEvent CellIDTAEvent
────────────── ──────────────────────
time time
deviceId deviceId
cellId cellId
antennaId antennaId
code : EventCode code : EventCode
networkType networkType
timingAdvance : double
«factory»
EventFactory
──────────────────────────────────────────
+ static createEvent(EventType, ...) : Event*
Events are written per-antenna to CSV output files. Each Antenna owns its output file; the file name is returned by Antenna::getAntennaOutputFileName().

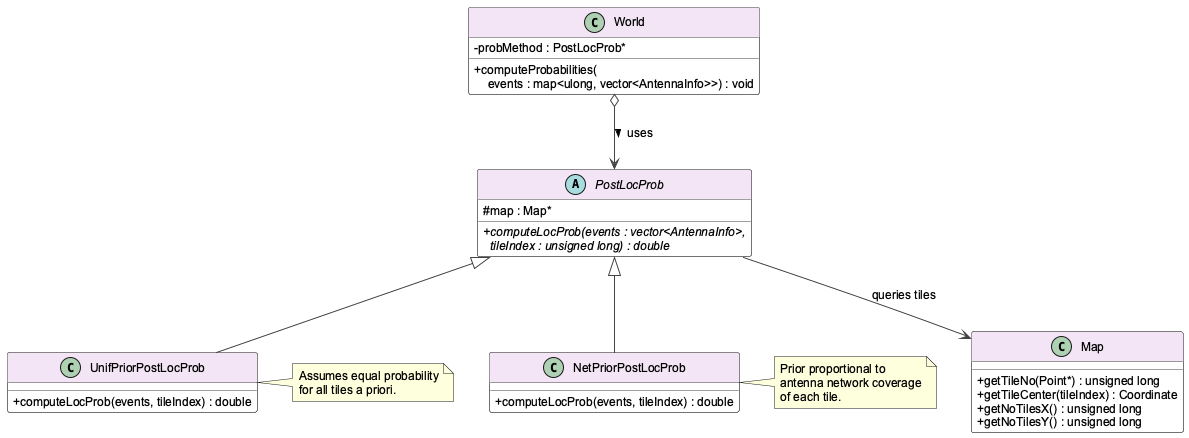

5. Probability Layer
«interface»
PostLocProb
─────────────────────────────────────────────────────
+ computeLocProb(events, tileIndex) : double
▲
┌─────┴──────────────────────┐
UnifPriorPostLocProb NetPriorPostLocProb
(uniform tile prior) (network-coverage prior)
Probability computation is triggered from World::computeProbabilities() after all agents have moved and events have been collected.

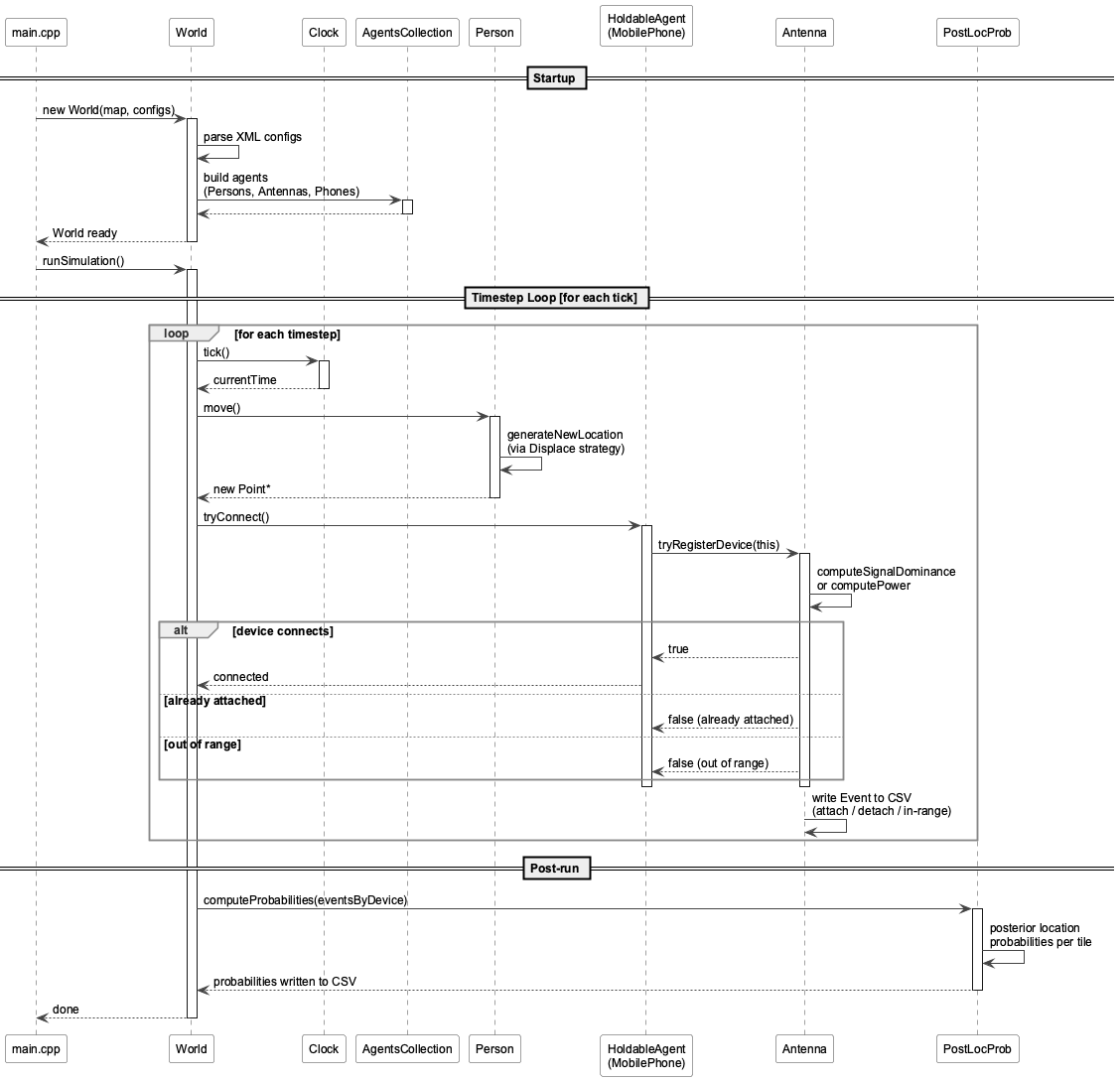

6. Simulation Lifecycle (Sequence Diagram)
main.cpp World Clock AgentsCollection Antenna PostLocProb
│ │ │ │ │ │
│─ new World() ─▶│ │ │ │ │
│ │─ parse configs ─▶│ │ │ │
│ │─ build agents ──────────────────▶ │ │ │
│ │ │ │ │ │
│─ runSimulation()▶ │ │ │ │
│ │ │ │ │ │
│ │◀── tick() ───────│ │ │ │
│ │ [for each timestep] │ │ │
│ │ │ │ │ │
│ │────── move() ──────────────────▶ │ │ │
│ │ [each Person] │ │ │
│ │ │ │ │ │
│ │────── tryConnect() ────────────────────────────▶ │ │
│ │ [each HoldableAgent] │ │ │
│ │ │ │ │ │
│ │◀────────────────────── Event ──────│ │ │
│ │ │ (attach/detach/in-range) │ │
│ │ │ │ │ │
│ │ [end of loop] │ │ │ │
│ │ │ │ │ │
│ │─── computeProbabilities() ─────────────────────────────────▶ │
│ │ │ │ │ │
│◀─ done ────────│ │ │ │ │
7. Module API Reference
7.1 World
Central orchestrator. Created once by main.cpp; owns all simulation state.
World(Map* map,
const string& personsConfigFile,
const string& antennasConfigFile,
const string& simulationConfigFile,
const string& probabilitiesConfigFile);
void runSimulation();
// Accessors
AgentsCollection* getAgents();
const Map* getMap();
Clock* getClock();
// Post-run probability layer
map<unsigned long, vector<AntennaInfo>>
getEvents(bool computeProbabilities);
void computeProbabilities(
map<unsigned long, vector<AntennaInfo>> eventsByDevice);
7.2 Clock
Discrete-time counter shared by all agents.
Clock(unsigned long startTime,
unsigned long endTime,
unsigned long increment);
unsigned long tick(); // advance one step; returns new time
unsigned long getInitialTime();
unsigned long getCurrentTime();
unsigned long getFinalTime();
unsigned long getIncrement();
unsigned long getNTimeSteps(); // total number of ticks
7.3 Map / WKTMap
Abstract spatial container. WKTMap reads the boundary polygon from a WKT file.
// Construction (WKTMap)
WKTMap(const string& wktFile);
// Spatial queries
geos::geom::Geometry* getBoundary();
geos::geom::Geometry* getEnvelope();
bool contains(geos::geom::Point*);
// Grid overlay (call once before simulation)
void addGrid(double tileDimX, double tileDimY);
// Tile lookup
unsigned long getTileNo(geos::geom::Point*);
unsigned long getTileNo(double x, double y);
geos::geom::Coordinate getTileCenter(unsigned long tileIndex);
// Tile dimensions
unsigned long getNoTilesX();
unsigned long getNoTilesY();
double getXTileDim();
double getYTileDim();
void dumpGrid(const string& outputFile); // write tile parameters to CSV
7.4 Agent / Person
// Agent (base)
unsigned long getId();
const Map* getMap();
Clock* getClock();
string toString(bool detailed = false);
// Person
geos::geom::Point* move(); // one step; updates internal position
void setLocation(geos::geom::Point*); // also propagates to held devices
void addDevice(const string& type, Agent* device);
void setDisplacementMethod(shared_ptr<Displace>& strategy);
void setHomeLocation(geos::geom::Point*);
void setWorkLocation(geos::geom::Point*);
void setAnchorLocation(geos::geom::Point*);
bool isHomePerson(); // true when person is at home location
bool hasDevices();
7.5 Antenna
// Connection management
bool tryRegisterDevice(HoldableAgent*); // returns true on success
void dettachDevice(HoldableAgent*);
// Signal model
AntennaType getType(); // OMNIDIRECTIONAL | DIRECTIONAL
double getRmax(); // maximum coverage radius (metres)
double computeSignalDominance(geos::geom::Point*);
double computePower(geos::geom::Point*);
// Ownership
MobileOperator* getMNO();
// Output
string getAntennaOutputFileName();
string dumpCell(); // WKT polygon of coverage area
void dumpSignal(); // signal strength/dominance grid to file
7.6 HoldableAgent / MobilePhone
// Connection
bool tryConnect(); // finds and connects to best antenna
CONNECTION_TYPE getConnectionType(); // USING_POWER | USING_SIGNAL_DOMINANCE
// | USING_SIGNAL_STRENGTH | UNKNOWN
const MobileOperator* getMobileOperator();
7.7 Displace (strategy interface)
virtual geos::geom::Point*
generateNewLocation(geos::geom::Point* current) = 0;
double getSpeed();
7.8 Event / CellIDEvent / CellIDTAEvent
// Event (abstract)
unsigned long getTime();
unsigned long getDeviceId();
virtual string toString() = 0;
// CellIDEvent adds
unsigned long getAntennaId();
unsigned long getCellId();
EventCode getCode(); // ATTACH_DEVICE | DETACH_DEVICE | …
string getNetworkType();
// CellIDTAEvent adds
double getTimingAdvance(); // distance proxy (used in 3G/4G)
7.9 EventFactory
static Event* createEvent(EventType type,
unsigned long time,
unsigned long deviceId,
unsigned long antennaId,
EventCode code,
const string& networkType,
/* optional */ double timingAdvance = 0.0);
7.10 Configuration parsers
Each parser reads an XML file and exposes a typed configuration object.
| Parser class | Config class | Root element |
|---|---|---|
SimulationConfigurationParser |
SimulationConfiguration |
<simulation> |
AntennaConfigParser |
AntennaConfiguration |
<antennas> |
PersonsConfigParser |
PersonConfiguration |
<persons> |
ProbabilitiesConfigParser |
ProbabilitiesConfiguration |
<probabilities> |
All parsers follow the same construction pattern:
FooConfigParser parser(filePath);
FooConfiguration config = parser.parse();
8. Key Enumerations
// Movement strategy selector (SimulationConfiguration)
enum MovementType {
RANDOM_WALK_CLOSED_MAP,
RANDOM_WALK_CLOSED_MAP_WITH_DRIFT,
LEVY_FLIGHT,
HOME_WORK,
MANHATTAN,
HOME_WORK_MANHATTAN
};
// Antenna radiation pattern
enum AntennaType {
OMNIDIRECTIONAL, // circular coverage; uses Rmax only
DIRECTIONAL // sector coverage; uses azimuth, elevation, beamwidths
};
// Event semantics
enum EventCode {
ATTACH_DEVICE,
DETACH_DEVICE,
ALREADY_ATTACHED_DEVICE,
IN_RANGE_NOT_ATTACHED_DEVICE
};
// Event record format
enum EventType {
CELLID, // timestamp + cell ID only
CELLIDTA // adds timing-advance distance estimate
};
// How a device selects its serving antenna
enum CONNECTION_TYPE {
USING_POWER,
USING_SIGNAL_DOMINANCE,
USING_SIGNAL_STRENGTH,
UNKNOWN
};
9. Output Files
| File pattern | Content | Trigger |
|---|---|---|
<antenna_id>.csv |
Per-antenna event log (time, deviceId, cellId, code, …) | Each attach/detach/in-range event |
grid.csv |
Tile coordinates and dimensions | Map::dumpGrid() |
signal_<antenna_id>.csv |
Signal strength/dominance on the tile grid | Antenna::dumpSignal() |
cells.wkt |
WKT polygons of antenna coverage areas | Antenna::dumpCell() |
probabilities_<tileId>.csv |
Posterior location probabilities per tile | World::computeProbabilities() |
10. External Dependencies
| Library | Role | Version |
|---|---|---|
| GEOS | All geometry: points, polygons, spatial predicates | 3.10.7 (max tested) |
| TinyXML2 | XML configuration parsing | embedded |
| csv.h | Header-only CSV parser | embedded |
| tnorm.h | Truncated normal distribution sampling | embedded |
